Green Waste Sieving Trommel Screen for Compost within Gravity Separator

Name: Green Waste Sieving Trommel Screen for Compost within Gravity Separator
Brand: sinolion
Price: 2 USD

Wholesale Green Waste Sieving Trommel Screen for Compost within Gravity Separator from china suppliers

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : Canada, United Kingdom, United States, Germany, Philippines, Brazil, Mexico, Russia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : Gearbox, Motor

Condition : New

Type : Gravity Separator

Place of Origin : Henan, China

Brand Name : sinolion

Voltage : 380v/415v/440v

Dimension(L*W*H) : depends on models

Weight : 2200 KG

Warranty : 1 Year

Product name : compost, topsoil, green waste sieving rotary trommel screen

Application : compost, topsoil, green waste

Power : 3-45KW

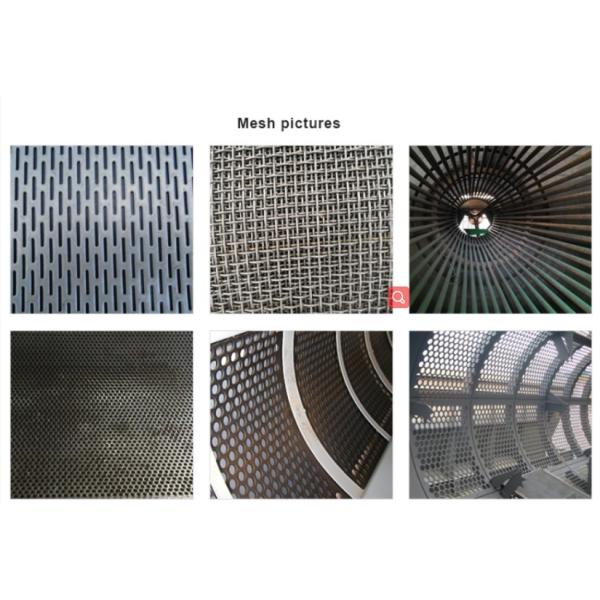

Screen material : steel bar, steel plate punch hole, steel wire woven, stainless steel

Dimension : according to capacity

Installation : supply manual to guide user

Capacity : 50-500 tons per hour

Feeding size : less than 300mm

Discharge size : as request

Color : yellow, white, red, blue, gray( or as client request)

Price : $2,500.00/sets >=1 sets

MOQ : 1 unit

Contact Now

High efficiency compost, topsoil, green waste sieving rotary trommel screen

Green Waste Sieving Trommel Screen for Compost within Gravity Separator

Product Description

Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.

Green Waste Sieving Trommel Screen for Compost within Gravity Separator

Application:munlcpal solid waste,construction waste,stone,compost,wood chips,sawdust,soil,coal,river sand,refractory materials,chemiacal,etc

Technical parameter of shaftless trommel screen

Model	Capacity (t/h)	Motor (kw)	Drum size (mm)	Feed Size (mm)	Overall size (mm)	Weight (KG)
GTS-1015	5-20	3	1000×1500	less than 200 mm	2600×1400×1700	2200
GTS-1020	10-30	4	1000×2000	less than 200 mm	3400×1400×2200	2800
GTS-1225	20-80	5.5	1200×2500	less than 200 mm	4200×1500×2680	4200
GTS-1530	30-100	7.5	1500×3000	less than 200 mm	4500×1900×2820	5100
GTS-1545	50-120	11	1500×4500	less than 200 mm	6000×1900×3080	6000
GTS-1848	80-150	15	1800×4800	less than 200 mm	6500×2350×4000	7500
GTS-2055	120-250	22	2000×5500	less than 200 mm	7500×2350×4800	9600
GTS-2265	200-350	30	2200×6500	less than 200 mm	8500×2750×5000	12800

Green Waste Sieving Trommel Screen for Compost within Gravity Separator

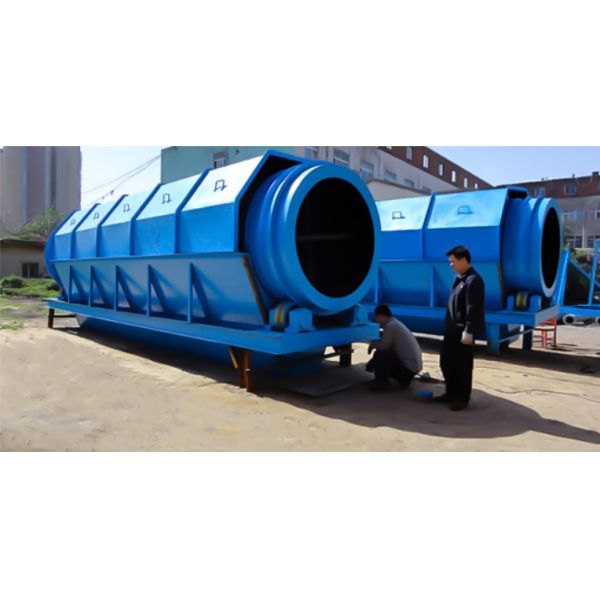

Green Waste Sieving Trommel Screen for Compost within Gravity Separator Images
