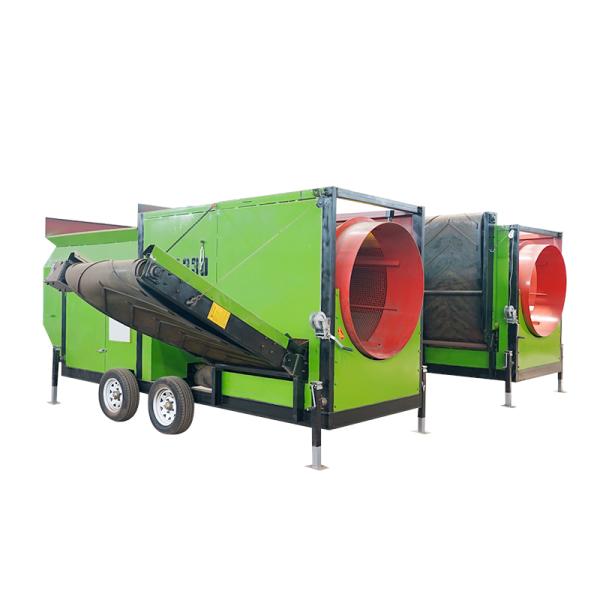

Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops

Product Categories
Zhengzhou Sinolion Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops

Applicable Industries : Building Material Shops, Machinery Repair Shops, Energy & Mining

Showroom Location : Canada, United Kingdom, United States, Germany, Brazil, Mexico, Russia, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 year

Core Components : Gearbox, Motor

Condition : New

Type : Circular

Application : Food Processing

Place of Origin : Henan, China

Brand Name : sinolion

Voltage : 380v/415v/440v

Dimension(L*W*H) : depends on processing trommel screen

Weight : 2000 KG

Warranty : 1 Year

Product name : compost processing trommel screen for organic fertilizer compost

Keyword : Compost Drum Sieve

Screen material : steel bar, steel plate punch hole, steel wire woven, stainless steel

Power : 3-45KW

Dimension : according to capacity

Installation : supply manual to guide user

Capacity : 50-500 tons per hour

Feeding size : less than 300mm

Discharge size : as request

Color : yellow, white, red, blue, gray( or as client request)

Price : $4,100.00 - $28,750.00/sets

MOQ : 1 unit

Contact Now

Compost processing trommel screen for organic fertilizer compost for sale

Product Description

Up to now, our compost drum sieve equipment has adopted the latest technology to make the machine more environmental-friendly, energy-saving and economical. The compost drum sieve is made up of round or hexagonal roller, frame, hopper, reducer, drive motor and auxiliary structure. Most importantly, the drum sieve has the super powerful screening ability, simple operation, convenient maintenance and adjustment, long service life, flexible sieve ratios, and other remarkable effects. Last but not least, the screening granularity can be adjusted casually in order to achieve the ideal match ratio.

Sinolion compost drum screen is widely used for screening and classifying material, such as compost, mining, chemical, coal, building materials, abrasives, and other industries.

Working Principle

Fristly, put the materials into the drum, then they are lifted up by the rotation as they fall back down. This action is repeated with each revolution along the length of the drum. The material to be graded is fed into rotary sieve from organic fertilizer granulator, screw pushed inner sieve. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.

Application:

munlcpal solid waste,construction waste,stone,compost,wood chips,sawdust,soil,coal,river sand,refractory materials,chemiacal,etc

Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops

Technical parameter

Model

Trommeldiameter
(mm)

Trommel length
(mm)

Capacity
(m3/h)

motor power(KW)

Weight
(Kg)

Dimensions
(L*W*H)

MTS0818

800

1800

≤15

2.4

650

3.15*1.1*1.65

MTS1022

1000

2200

≤30

8.2

2750

4.3*1.9*2.45

MTS1230

1200

3000

≤60

10.6

3210

5.4*2.1*2.7

MTS1550

1500

5000

≤90

20

7900

9.4*2.2*2.9

Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops

Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops

Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops

Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops

Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair ShopsCompost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops Compost Processing Trommel Screen for Organic Fertilizer Compost Machinery Repair Shops
