Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen

Product Categories
Zhengzhou Sinolion Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

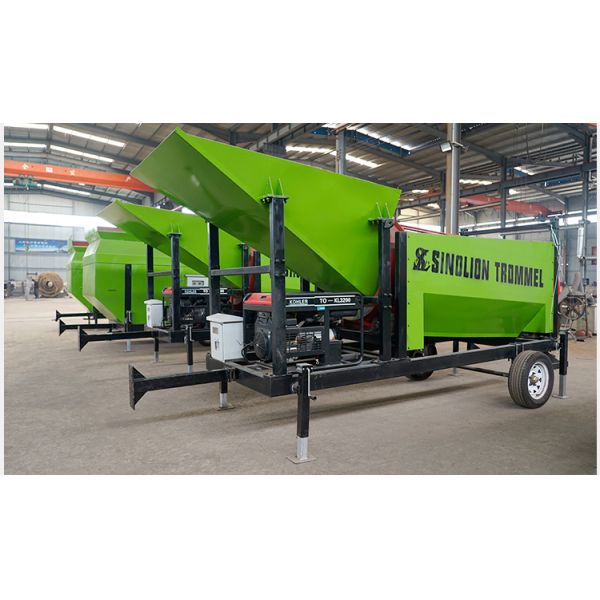

Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen

Applicable Industries : Food & Beverage Factory, Farms, Home Use, Energy & Mining

Showroom Location : Canada, United States, Australia

Condition : New

Type : Mobile Trommel Screen

Production Capacity : 90%

Place of Origin : Henan, China

Brand Name : sionlion

Voltage : 110v-440v

Dimension(L*W*H) : Customized

Weight : 2000 KG

Warranty : 1 Year

Marketing Type : New Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC

Key Selling Points : Easy to Operate

Product name : Mobile Trommel Screen

Application : Mining Separation

After-sales Service Provided : Video Technical Support

Color : Customized Making

Raw materials : Molybdenum Ore

Quality : High Reputation

Screen size : 3-10mm / Customized

Keywords : Alluvial Gold Mining Machine

Usage : Mining Separatoion

Main products : Mining Feeder

Price : $4,100.00 - $28,750.00/sets

MOQ : 1 unit

Contact Now

Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mobile Trommel Screen Waste Rotary Drum Screen For Sand Washing Wast Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen

Structure and Principle

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
（KW）
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen
