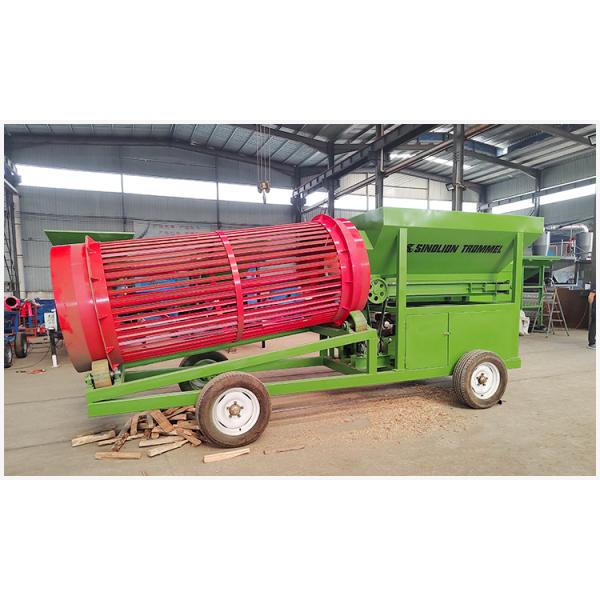

Automatic Rotary Type Mobile Drum Screen for Energy Mining Applications

Name: Automatic Rotary Type Mobile Drum Screen for Energy Mining Applications
Brand: Sinolion
Price: 13 USD

Wholesale Automatic Rotary Type Mobile Drum Screen for Energy Mining Applications from china suppliers

Applicable Industries : Energy & Mining

Showroom Location : Canada, United States, Germany, Mexico, Colombia, South Africa, Nigeria, Australia

Condition : New

Type : Gravity Separator

Production Capacity : 60m3/hour

Place of Origin : China

Brand Name : Sinolion

Voltage : 220V/380V

Dimension(L*W*H) : 5613*1940*2390, depends on models

Weight : 1790 KG

Warranty : 1 Year

Marketing Type : New Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Engine

Key Selling Points : Automatic

Product name : firewood trommer screen

Application : Ore, waste, mulch, organics, bark, MSW, building waste

Feeding size : less than 300mm

Dimension : according to capacity

Color : yellow, white, red, blue, gray( or as client request)

Capacity : 60m3/h

Certification : CE ISO

Installation : supply manual to guide user

Discharge size : as request

Price : $13,100.00/sets 1-1 sets

MOQ : 1 unit

Contact Now

Automatic Rotary Type Mobile Drum Screen for Energy Mining Applications

Hot Selling Quckily Rotary Type Mobile Drum Screen Firewood Trommel Screen

The firewood trommel screen will efficiently remove all fines (dirt, gravel, wood chips & splinters) through the fine screen and most of the kindling and smaller pieces of wood through the coarse screen. The firewood trommel screen is designed as an add on to a bulk processing system. Cleaning the wood in the last step before packaging for bulk retail sale. For wood yards this means the wood is cleaner, more saleable and results in more accurate weight measurement. With a constantly loaded feeding hopper, the capacity of this machine is estimated in excess of 60m3 per hour. Talk with our team about customising a firewood trommel screen to suit your requirements.

Structure and Principle

The gravel trommel is made up of five main parts: central drum, rack, funnel, reducer, motor and so on. Is a more traditional screening equipment. After the material crushed by the crusher enters the roller sieving machine, the material can be screened evenly by centrifugal force and jigging of the center drum. Depending on different mesh screen mesh to screen materials one by one. Sieved out different specifications of stone and then passed through the chute into the belt conveyor to transport to the finished material yard. The gravel trommel simple structure, very smooth operation, can add
dust cover. After adding dust shield,it has good sealing property, low noise and quick screen changing. The gravel trommel has the advantages of fine classification,large separation ratio, high yield, accurate separation and low failure rate. The gravel trommel machine is especially suitable for screening and grading use in stone plant.

Product Name	Mobile Firewood Trommel Screen
Model	Capacity (t/h)	Power (kw)	Diameter (mm)	Length (mm)
FTS1230	60	3	1200	3000

Automatic Rotary Type Mobile Drum Screen for Energy Mining Applications Images
