Dry or Batch Type Calcium Lime Ball Mill for Gold Processing in Small Mini Laboratory

Name: Dry or Batch Type Calcium Lime Ball Mill for Gold Processing in Small Mini Laboratory
Brand: Sinolion
Price: 2 USD

Wholesale Dry or Batch Type Calcium Lime Ball Mill for Gold Processing in Small Mini Laboratory from china suppliers

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 20201

Warranty of core components : 2 years

Core Components : PLC, Engine, Motor, Pump

Condition : New

Type : limesBall Mill

Motor Type : AC Motor

Capacity(t/h) : 0.5-83t/h

Place of Origin : China

Brand Name : Sinolion

Dimension(L*W*H) : Depend on models

Weight : 2000 KG

Warranty : 1 Year

Keywords : calcium limee grinding equipment

Application : gold iron copper, quartz limestone, clinker, cement, chrom, chromite

Grinding way : wet, dry or batch type

Operation : automatic or manual

Driving type : diesel engine or motor

Liner : high manganese, rubber, ceramic(as client request)

After-sales Service : Engineers available service overseas

Brand : Sinolion

Product name : calcium lime ball mill gold processing grinding ball mill

Name : calcium lime ball mill

Price : $2,686.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Product Description

Small mini dry laboratory calcium lime ball mill gold processing grinding ball mill

Gold mine grinding equipment description

Gold mine grinding equipment is the key equipment of crushing material, which is mainly used for single stage fine grinding, grinding, grinding circuit of grade two. Widely used in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry. It is divided into dry method and wet grinding method. According to different ore discharging methods, it can be divided into lattice type and overflow type. Due to different unloading modes, it can be divided into grate type and overfall type.

Main technical parameters of gold mine grinding equipment

Model	Cylinder rotating (r/min)	Grinding media loading (t)	Feed size (mm)	Discharge size (mm)	Capacity (t/h)	Powder (kw)	Weight (t)
Φ900x1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
Φ900*3000	38	2.51	≤ 20	0.075-0.89	1.1-3.5	22	4.6
Φ1200*2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	30-45	12.5
Φ1200*3000	32	5	≤ 25	0.074-0.4	1.6-5	30-45	12.8
Φ1200*4500	32	7	≤ 25	0.074-0.4	1.6-5.5	55	13.8
Φ1500*3000	27	8	≤ 25	0.074-0.4	2-5.8	75-90	17
Φ1500*4500	27	14	≤ 25	0.074-0.4	3-6.5	90-110	21
Φ1500*5700	27	15	≤ 25	0.074-0.4	3.5-8	110-132	24.7
Φ1830*3000	24	11	≤ 25	0.074-0.4	4-10	132-180	28
Φ1830*6400	24	23	≤ 25	0.074-0.4	6.5-10	210	34
Φ1830*7000	24	25	≤ 25	0.074-0.4	7.5-17	210-245	36
Φ2200*5500	21	30	≤ 25	0.074-0.4	10-22	370	48
Φ2200*6500	21	31	≤ 25	0.074-0.4	14-26	380	50
Φ2200*7500	21	33	≤ 25	0.074-0.4	15-29	475	56
Φ2400*7000	21	39	≤ 25	0.074-0.4	16-33	475	69
Φ2400*11000	21	51.5	≤ 25	0.04-0.08	16-35	630	99
Φ2700*3600	21	39	≤ 25	0.074-0.4	16-29	475	74
Φ2700*4500	21	43.5	≤ 25	0.074-0.4	20-35	500	80

Dry or Batch Type Calcium Lime Ball Mill for Gold Processing in Small Mini Laboratory

***Main features of* *gold mine grinding equipment***

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3) Mine ball mill in a high automatization and intellectualization, no pollution.

Working principle

The gold mine grinding equipment is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Certifications

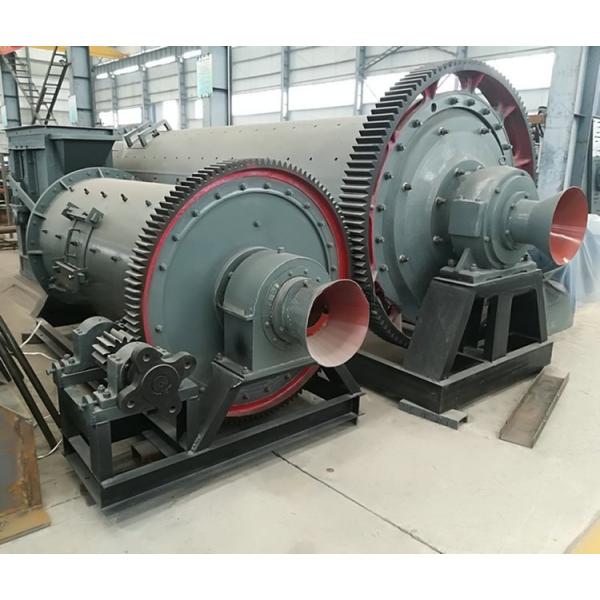

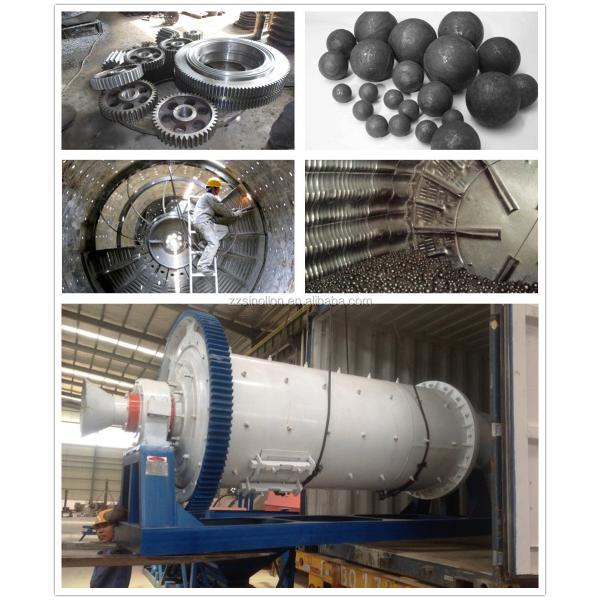

Detailed Images

Our Service

●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand. ●Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you. ●After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free. ●Lifelong service: One year warranty to make sure your machine runs constantly. Always provide spare parts for a long term.

Packing & Delivery

Packaging of gold ore grinding ball mill
Size	Depend on models
Weight	Depend on models
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
